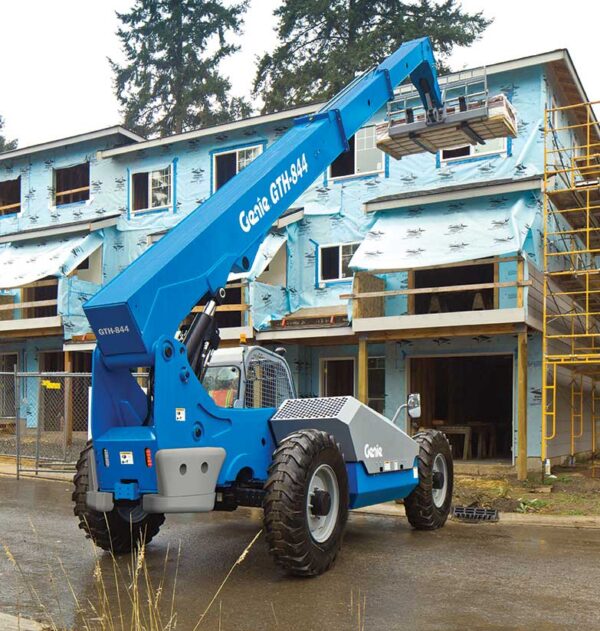

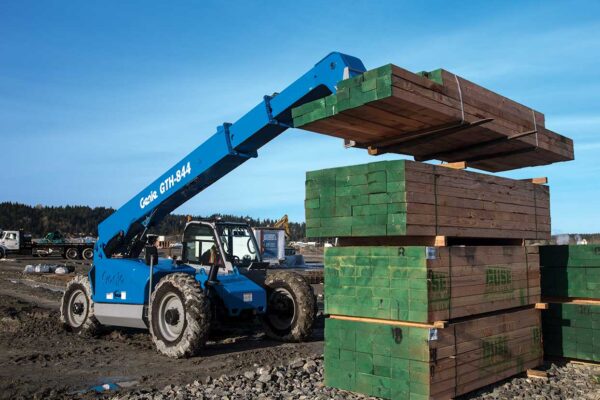

Telehandler – GTH-844
Genie® high reach telehandlers offer excellent lift capacity, easily covering all your worksite needs. The 2012 redesigned GTH-844 telehandler features a right-side mount engine, a new ergonomic operator’s station, a narrowed width to 95 inches, and enhanced serviceability.
Description
Genie® high reach telehandlers offer excellent lift capacity, easily covering all your worksite needs. The 2012 redesigned GTH-844 telehandler features a right-side mount engine, a new ergonomic operator’s station, a narrowed width to 95 inches, and enhanced serviceability.
Genie GTH-844 Specifications
| Specification | US | Metric |
|---|---|---|
| Measurements | ||
| Model | Genie GTH-844 | |
| Maximum lift height | 43 ft 10 in | 13.36 m |
| Maximum forward reach | 28 ft 2 in | 8.59 m |
| Reach at maximum height | 2 ft 1 in | 0.64 m |
| Stowed height | 7 ft 10 in | 2.39 m |
| Stowed length without forks | 20 ft 3 in | 6.35 m |
| Width | 7 ft 11 in | 2.41 m |
| Wheelbase | 11 ft 4 in | 3.45 m |
| Ground clearance at center | 1 ft 3 in | 0.38 m |
| Ground clearance at axle | 1 ft 5 in | 0.43 m |
| Fork cross section | 2 x 4 in | 51 x 101 mm |
| Capacity and Performance | ||
| Maximum lift capacity | 8,000 lb | 3,629 kg |
| Lift capacity at maximum height | 6,000 lb | 2,722 kg |
| Lift capacity at maximum reach | 2,000 lb | 907 kg |
| Maximum drive speed | 17 mph | 27.4 km/h |
| Boom raise and lower time | 13 / 10 seconds | 13 / 10 seconds |
| Boom extend and retract time | 14 / 9 seconds | 14 / 9 seconds |
| Drawbar pull | 21,000 lb | 9,525 kg |
| Outside turning radius with four-wheel steering | 13 ft 9 in | 4.19 m |
| Auxiliary hydraulic flow | 2-15 gpm | 7.57-56.8 L/min |
| Auxiliary hydraulic pressure | 3,000 psi | 207 bar |
| Standard tires | 13 x 24 in, 12-ply rough-terrain tires | |
| Power | ||
| Deutz engine option | 3.6 TCD turbocharged Tier 4 diesel, 99 hp | 74 kW |
| Perkins engine option | 854E turbocharged Tier 4 diesel, 99 hp | 74 kW |
| Perkins Tier 3 engine option | 1104D turbocharged diesel, 99 hp | 74 kW |
| Electrical system | 12 V | |
| Alternator | 120 amps with Perkins 854E; 95 amps with Perkins 1104D or Deutz 3.6 TCD | |
| Battery | 1,000 CCA at 0°F | 1,000 CCA at -18°C |
| Hydraulic tank capacity | 40 gal | 151 L |
| Hydraulic system capacity with tank | 50 gal | 189 L |
| Fuel tank capacity | 35 gal | 132 L |
| Weight and Compliance | ||
| Operating weight | 22,600 lb | 10,251 kg |
| Standards compliance | ANSI/ITSDF B56.6 and CSA B335 | |
Machine weight and load ratings can vary by equipment options, attachments, and regional requirements.
Need a Genie GTH-844 rental?
Request rental pricing and availability for jobsites in Pennsylvania, New Jersey, and Delaware.
Additional information
| Brand | Genie |
|---|---|
| Key Features | – Right-side mount engine provides enhanced visibility |
